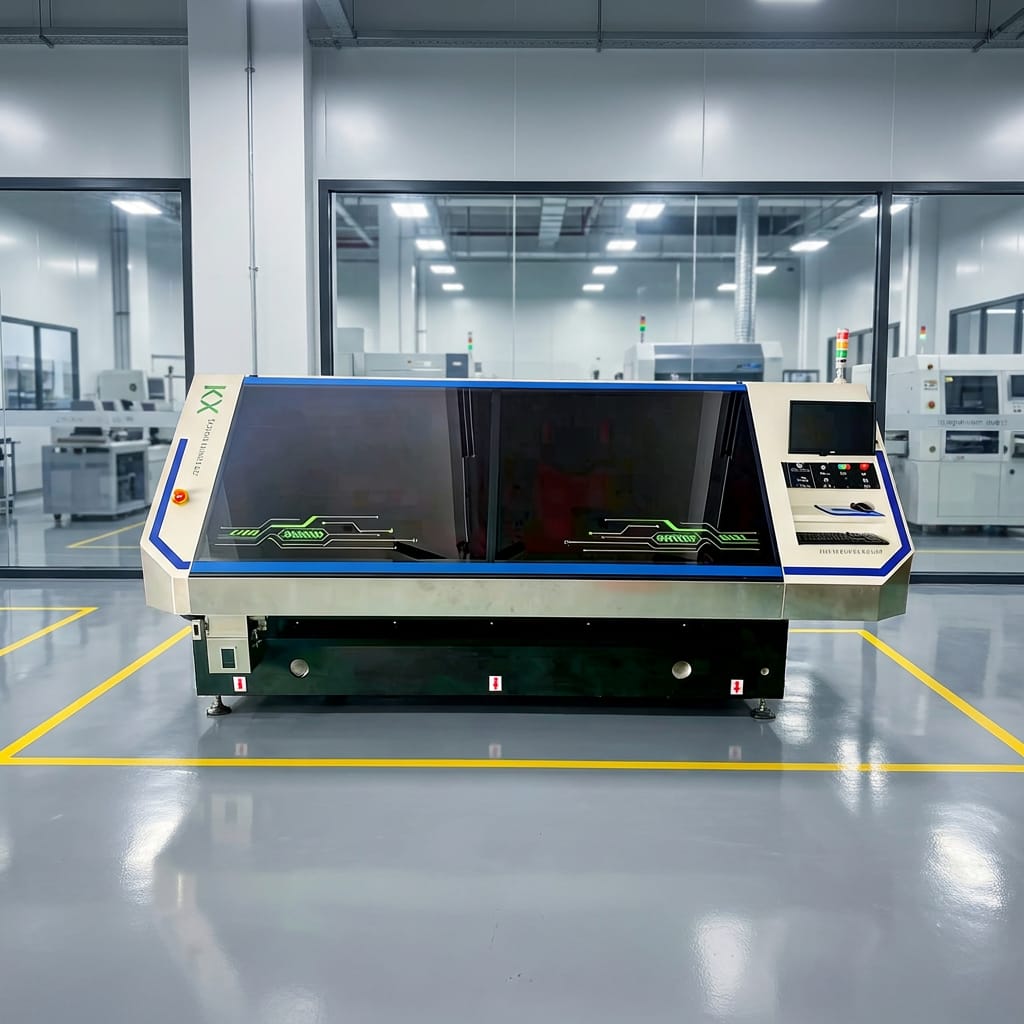

KX-AS-4ZH 4 Spindles PCB Drilling and Routing Machine

Key Design and Performance Highlights:

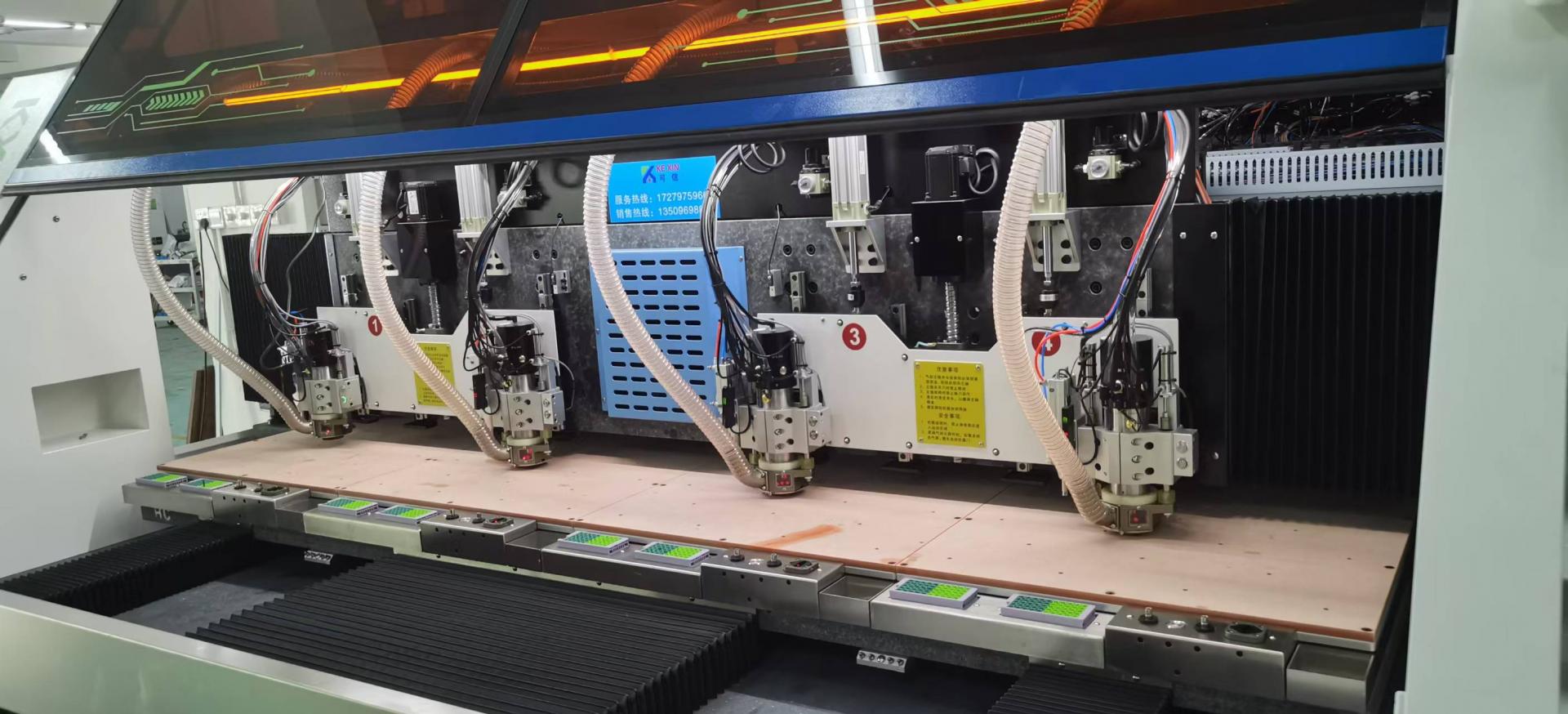

1. Four-Spindle Productivity — Four high-frequency ball-bearing spindles (60,000 rpm standard; 125,000 rpm optional.
2. X/Y/Z Linear Motor Drive — Higher acceleration, smoother motion and higher long-term accuracy .
3. Granite Machine Body —  000-grade precision granite, providing superior vibration damping and long-term thermal stability.
4. 100 Tools per Spindle — 4 × 100-tool automatic tool magazines (total 400 tools), ATC in under 10 seconds
5.  Laser Tool Measurement— Measurement of tool length, diameter and run-out; supports micro-tool detection down to φ0.05 mm.
6. Windows 10 Control System—Closed-loop position feedback running KEXIN V10.0 software on Windows 10 IoT Enterprise LTSC
7. Fully compatible — Excellon, Siebold & Meyer drill files, Gerber and standard NC programs.
8. Multi-Material Capability — handles FR-4, CEM-1/3, aluminum MCPCB, copper-based PCB and other common PCB substrates
9. Multi-Panel Stack Drilling — up to 3 panels of standard FR-4 simultaneously, depending on panel thickness.

   General  Parameters

   Parameter	Specification
   Model	KX-AS-4ZH
   Machine Type	Four-Spindle CNC PCB Drilling & Routing Machine
   Application	Drilling & routing of PCBs (FR-4 single / double / multilayer, Aluminum MCPCB, Copper-based, CEM, etc.)
   Machining Range (per spindle)	X 690 × Y 570 × Z 100 mm
   Machine Footprint (L × W × H)	3,380 mm × 1,900 mm × 2,100 mm
   Machine Weight	Approx. 6,500 kg (base + gantry, granite construction)

   Motion & Mechanical System

   Parameter	Specification
   Standard Drive System (X / Y / Z)	X / Y / Z linear motors with high-resolution linear encoders, full closed-loop control
   Guideways	HIWIN linear guideways
   X / Y Rapid Traverse Speed	Up to 45 m/min
   Z-axis Stroke	100 mm
   Machine Body	High-grade 000 granite (base + gantry)
   Positioning Accuracy (X / Y / Z)	±0.005 mm ; ±0.003 mm
   Repeat Positioning Accuracy	±0.003 mm
   Routing Accuracy	±0.05 mm

   Spindle & Tooling

   Parameter	Specification
   Spindle Count	4 pcs
   Spindle Type	KL-60AK2 high-frequency ball-bearing spindle
   Spindle Speed	60,000 rpm standard; optionally 125,000 rpm air-bearing spindles
   Spindle Power	2.5 kW
   Drill Diameter Range	φ0.4 mm – φ6.4 mm
   Routing Cutter Diameter	φ0.6 mm – φ3.175 mm
   Tool Magazine Capacity	100 tools per spindle
   Tool Change Time	≤ 10 seconds (ATC, automatic)
   Shaft Clamping Method	Pneumatic clamping for tool
   Tool Detector	laser tool measures ,tool length, diameter and run-out

   Automation, Control & Software

   Parameter	Specification
   Control System	KEXIN V10.0 closed-loop CNC
   Operating System	Windows 10 IoT Enterprise LTSC 64-bit
   Industrial PC	Industrial-grade IPC + dedicated motion controller
   Front Door	Automatic lifting and closing
   Tool Stripping System	Pneumatic automatic ejecting device
   Broken-Tool Detection	Real-time, all spindles
   Program Compatibility	Excellon, Siebold & Meyer formats, Gerber, standard NC drill / route files
   PCB Stack Capability	Up to 3 panels of standard-thickness FR-4 (depends on panel thickness)

   Utilities & Environment

   Parameter	Specification
   Power Supply	AC 380 V ± 10%, 50/60 Hz, 3-phase
   Total Installed Power	≈ 8 kVA (standard); ≈ 12 kVA with linear motor OP-01
   Air Pressure Requirement	≥ 6 kg/cm²
   Dust Extraction (Vacuum)	External industrial vacuum required (recommended 3 HP or larger); buyer-supplied
   Chiller	Included (water chiller for spindles)
   Operating Temperature	25 ± 5 °C (recommended workshop environment)
   Ambient Humidity	40 % – 70 % RH, non-condensing
